AMOS-825

搭载1.0GHz NXP i.MX 6Quad四核Cortex-A9系统芯片

支持-20°C ~ 70°C宽温工作

支持9-36V工作电压

支持传统I/O连接,包括双CAN总线,COM接口及GPIO接口

为单个视频,音频,和外围电缆提供SCSI 50-pin D-sub连接器

概要数据资料下载订购
威盛AMOS-825车载系统

威盛AMOS-825是一个坚固的无风扇微型系统,专为满足需要高性能和严苛环境要求的车载应用而设计,像支持宽温宽压工作,配备复杂的电源管理和点火装置快速启动系统。

硬 件

威盛AMOS-825搭载ARM架构1.0GHz NXP i.MX 6Quad四核Cortex-A9 SoC,提供了车载信息娱乐和导航应用所需的高运算能力和多媒体性能。


威盛AMOS-825无风扇系统的完整尺寸为15.5mm (W) x 48.1mm (H) x 103.3mm (D),采用加固型设计,能够支持-20°C~70°C的宽温工作,同时功耗极低,在一般的操作环境中,仅为7W。板载1GB DDR3 SDRAM内存及16GB eMMC闪存,拥有丰富的连接性能,包括一个集成BT4.0 / wi-fi / GPS / GNSS组合,一个USB模块,一个SCSI 50-pin D-sub连接器和COM/CAN接口,降低系统布线需求。

软 件

威盛AMOS-825 Android软件开发包提供Android 6.0以及含有多个应用程序接口的威盛Smart ETK,其中包括防止系统崩溃的看门狗定时器(WDT)、GPIO接口、COM接口、RTC电源开关及1个例程应用。此外还提供Android软件客制化服务,帮助客户加速产品上市,降低开发成本。


扩展性

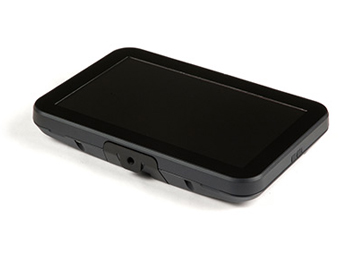

可选配一个7寸投射式电容触摸屏,加速完成整体系统的开发。


h-applications.png 应用

威盛AMOS-825采用坚固的紧凑型设计,支持宽压宽温和点火装置的快速启动,提供了一个稳定、高性能的解决方案,可以实现快速客制化高要求标准的车载应用。


点击此处下载AMOS-825数据资料PDF版,或浏览以下信息:

型号AMOS-825
处理器1.0GHz NXP i.MX 6Quad Cortex-A9 quad-core SoC
系统内存1GB DDR3 SDRAM onboard
板载存储16GB eMMC Flash memory
Boot Loader4MB SPI Flash ROM
显卡

Vivante GC2000 GPU

3 independent, integrated 3D/2D and video graphics processing units

Graphics engine supporting OpenGL® ES 2.0, OpenCL and OpenVG™ 1.1 hardware accleration

Supports MPEG-2, VC-1 and H.264 video decoding up to 1080p

Supports SD encoding

LANMicrel KSZ9031RNX Gigabit Ethernet transceiver with RGMII support
Wi-Fi/蓝牙/GPS

IEEE 802.11BGN 1T1R & BT4.0 combo USB module

MAX-7 u-blox 7 GPS/GNSS module

音频NXP SGTL5000 low power stereo codec
USBSMSC USB2514 USB 2.0 high speed 4-port hub controllers
CANTI SN65HVD1050 EMC optimized CAN transceiver
扩展I/O1 miniPCIe slot

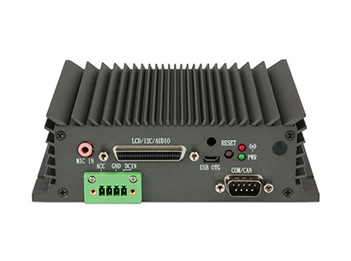

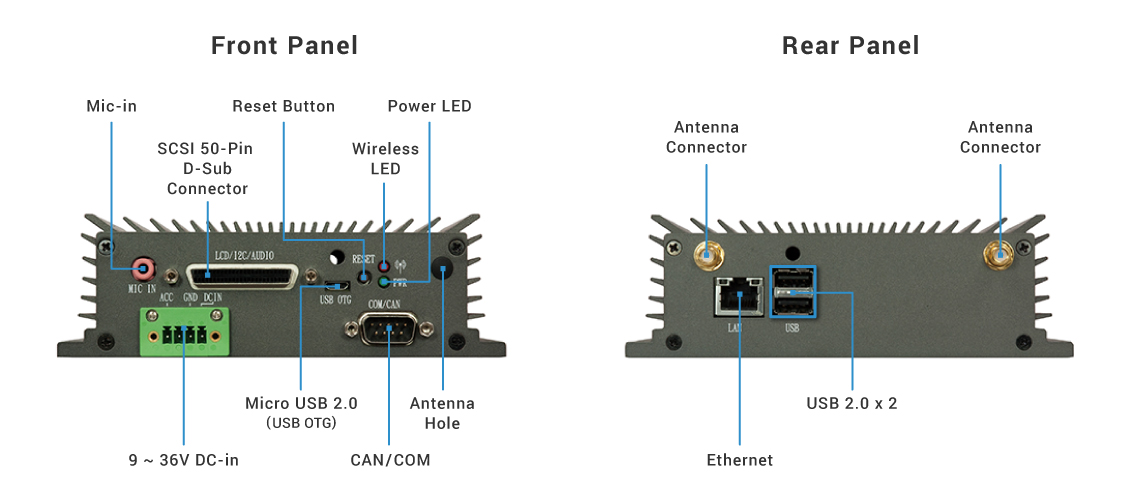

前面板I/O

1 Micro USB 2.0 OTG port

1 9-pin D-sub connector (supports 1 CAN Bus and 1 COM TX/RX for debug)

1 SCSI 50-pin D-sub connector (Backlight power, Dual-channel LVDS, 4 GPIO, I2C, Line out and Mic-in)

1 Mic-in

1 Reset button

1 Power & WPAN/WWAN/WLAN LED

1 Antenna hole

1 4-pole Phoenix DC jack

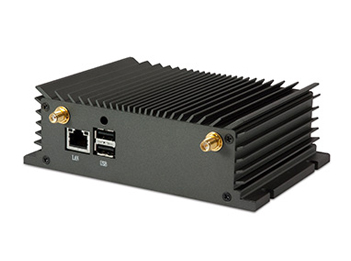

后面板I/O2 USB 2.0 ports

1 Gigabit Ethernet port

2 Antenna connectors for Wi-Fi/BT and GPS

供电9 ~ 36V DC-in (typical: 7W)
操作系统Android 6.0
电子看门狗Integrated watchdog timer supports two comparison points. Each comparison point can interrupt ARM core, 2nd comparison point capable of generating external interrupts on WDOG line.
工作温度0°C ~ 60°C
工作湿度0% ~ 90% @ 45°C (non-condensing)
抗震性能

With onboard eMMC

7Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis

抗冲击性能

With onboard eMMC

70G, IEC 60068-2-27, half sine, 11ms duratio

底部开口盖Open window with removable door plate to access Micro SD and miniPCIe slots
产品尺寸150.5mm(W) x 48.1mm(H) x 103.3mm(D) (5.9" x 1.9" x 4.1")
重量0.673kg (1.48lbs)
认证CE, FCC


AMOS-825 文件

文件版本日期
用户手册v1.082019-04-15
Android
Android 开发指南 for BSP v5.0.3v1.002018-05-31
Android 快速入门指南 for EVK v5.0.3v1.002018-05-31
Smart ETK SDK 程序设计指南v1.012018-05-31
Linux

Linux 开发指南 for EVK v3.0.4v1.002018-10-04
Linux 快速入门指南 for BSP v3.0.4v1.002018-10-04

AMOS-825 软件下载

文件版本日期
Android
Android 6.0 Board Support Package (BSP) (488MB)v5.0.32018-05-31
Android 6.0 Evaluation Kit (EVK) (245MB)v5.0.32018-05-31
Linux
Linux Board Support Package (BSP) (4.3GB)v3.0.42018-10-09
Linux Evaluation Kit (EVK) (281.4MB)v3.0.42018-10-09
Azure IoT PnP Software (1.1MB)v0.12019-11-08

重要: 一旦下载该系列软件包,表明您已同意软件许可协议。如您不同意软件协议的任何条款和条件,请不要继续下载该软件。

Android BSP & EVK v5.0.3 主要特点
  • U-Boot version: 2015.04

  • Kernel version: 3.14.52

  • Evaluation image: Android Marshmallow 6.0

  • Development based on NXP android_M6.0.1_1.0.0-ga (Android 6.0 Marshmallow)

  • Supports SPI with eMMC boot

  • Supports 7″ Projective capacitive touch monitor (800×480) through I2C interface

  • Supports COM as debug port

  • Supports two FlexCAN TX/RX

  • Supports Gigabit Ethernet

  • Supports Mic-in

  • Supports IEEE 802.11b/g/n Wi-Fi

  • Support Bluetooth 4.0

    • A2DP and SPP profile

  • Supports U-blox MAX-7 GPS/GNSS module

  • Supports Smart ETK v1.00: Watchdog timer, UART, and FlexCAN

  • Supports OTA (Over-The-Air technology)

  • Supports shutdown option in Quick Settings

  • Supports Ethernet configuration in Settings

(Bold font highlights the changes in this BSP release)

Linux BSP & EVK v3.0.4 主要特点
  • U-Boot version: 2014.04

  • Kernel version: 3.14.28

  • Evaluation image: OpenEmbedded-core built with Yocto 1.7 Dizzy

  • Development based on NXP fsl-yocto-3.14.28_1.0.0 (Yocto 1.7 Dizzy)

  • Supports SPI ROM with eMMC or Micro SD boot (default)

  • Supports 7“ Projective capacitive touch monitor (800 x 480) (through I2C interface)

  • Supports COM as debug port

  • Supports 2 FlexCAN TX/RX

  • Supports Gigabit Ethernet

  • Supports Line-out and Mic-in

  • Supports IEEE 802.11b/g/n Wi-Fi Support

  • Support Bluetooth 4.0

    • A2DP and SPP profile

  • Supports MAX-7 u-blox 7 GPS/GNSS module

  • Supports Watchdog timer and RTC

  • BSP v3.0.4 Bug Fixes and Modifications

    • Added eMMC5.1 support.

    • Fixed bugs.

Azure IoT PnP Software v0.1 主要特点
  • Supports Microsoft IoT Plug and Play on VIA AMOS-825 platfor

  • Supports Modbus gateway

  • Includes CA certification and library

  • For more detailed information, please refer to the webpage: Azure IoT Solutions


AMOS-825 订购信息

型号SoC描述
AMOS-825-1Q10A2NXP i.MX 6Quad Cortex-A9 @ 1.0GHz

Fanless embedded system with 1.0GHz NXP i.MX 6Quad Cortex-A9 quad-core SoC, 1GB DDR3 RAM, 16GB eMMC, 4MB SPI Flash ROM, 2 USB 2.0, Micro USB 2.0 OTG port, CAN bus, COM, SCSI 50-pin D-sub connector, GPIO, Gigabit Ethernet, miniPCIe slot, Micro SD card slot, 9~36V DC-in


包装清单: AMOS-825 system, Phoenix plug to DC jack, COM/CAN conversion cable, SCSI 50-pin conntector cable, Screw pack for mounting, Rubber feet pack

AMOS-825 配件

型号描述

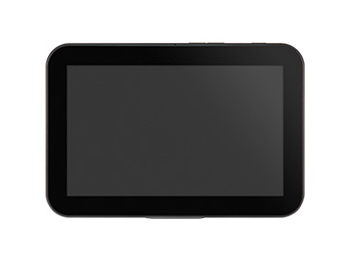

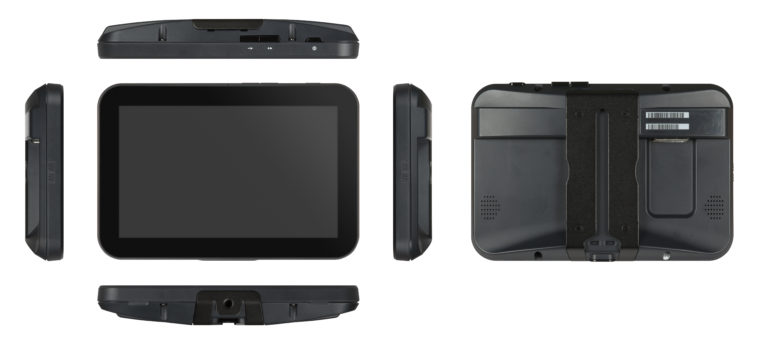

99G73-0102297" Projective capacitive touch monitor (800 x 480, -20°C ~ 70°C)
