· 超精简型3.5″单板计算机板型
· 支持3G，Wi-Fi和BT无线连接
· 可选5V或12V电源输入
· 提供Android & Linux 解决方案
工具套件
· 可选10.1″LVDS LCD触控面板
搭载威盛双核Cortex-A9 SoC系统芯片，威盛VAB-630具有先进的多媒体效能，提供支持丰富的I/O和无线连接，以用于大量网关、数字标牌和HMI应用的高级软件开发工具。更提供可选的10.1英寸触控面板，以加速系统开发时间。

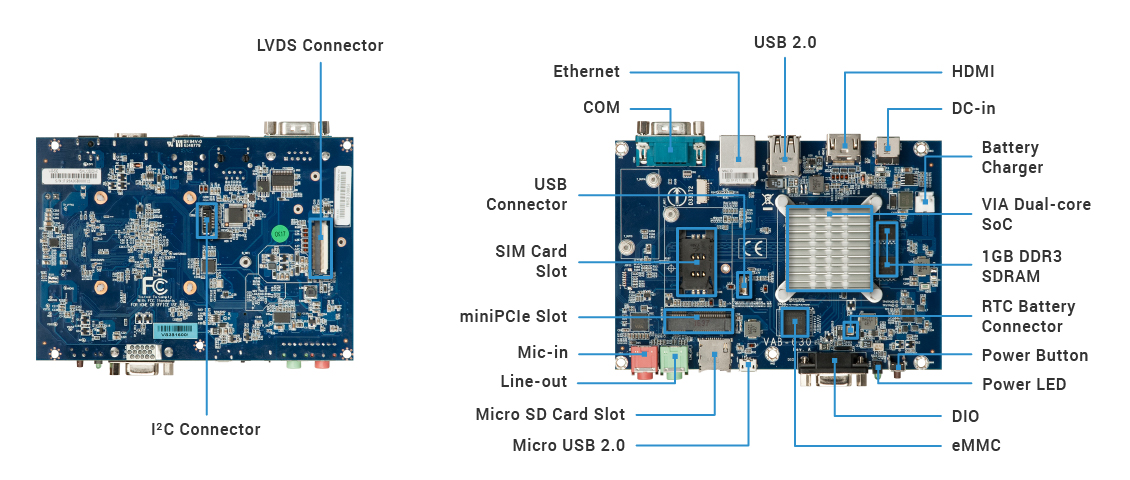

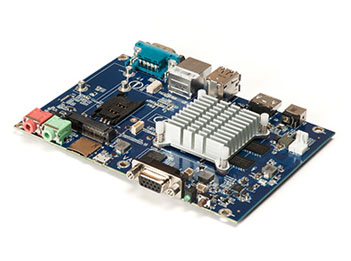

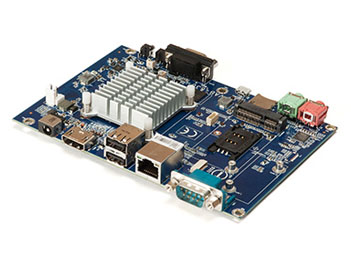

硬 件基于仅有14.6cm x 10.2cm的超精简型3.5″单板计算机外观设计，威盛 VAB-630具有丰富的I/O连接功能以及流畅的1080p影像播放硬件加速。
软 件威盛VAB-630 BSP工具套件支持Android 5.0以及包含多个API的威盛 Smart ETK, 包括用于防止系统崩溃，看门狗定时器（WDT），GPIO和UART访问以及示例应用程序。
威盛VAB-630 Linux 软件开发包（BSP）预置Debian image，包括内核及启动加载器源代码。其它性能包括1个Tool Chain，帮助调整内核，管理板载针脚、GPIO接口、I2C接口及其他硬件特性。
还提供了一套完整的软件客制化服务，可加快上市时间并尽大限度地降低开发成本。

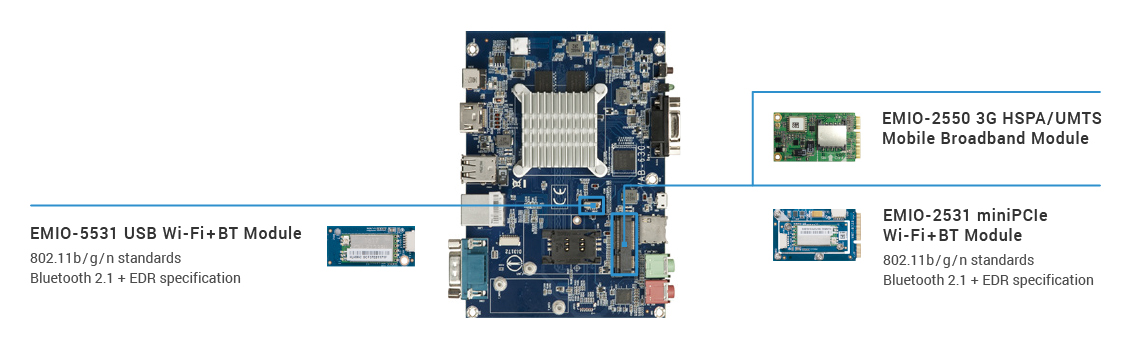

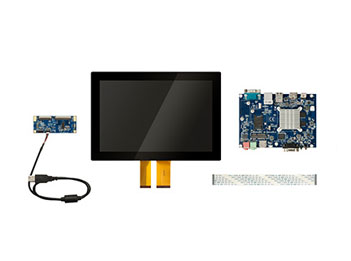

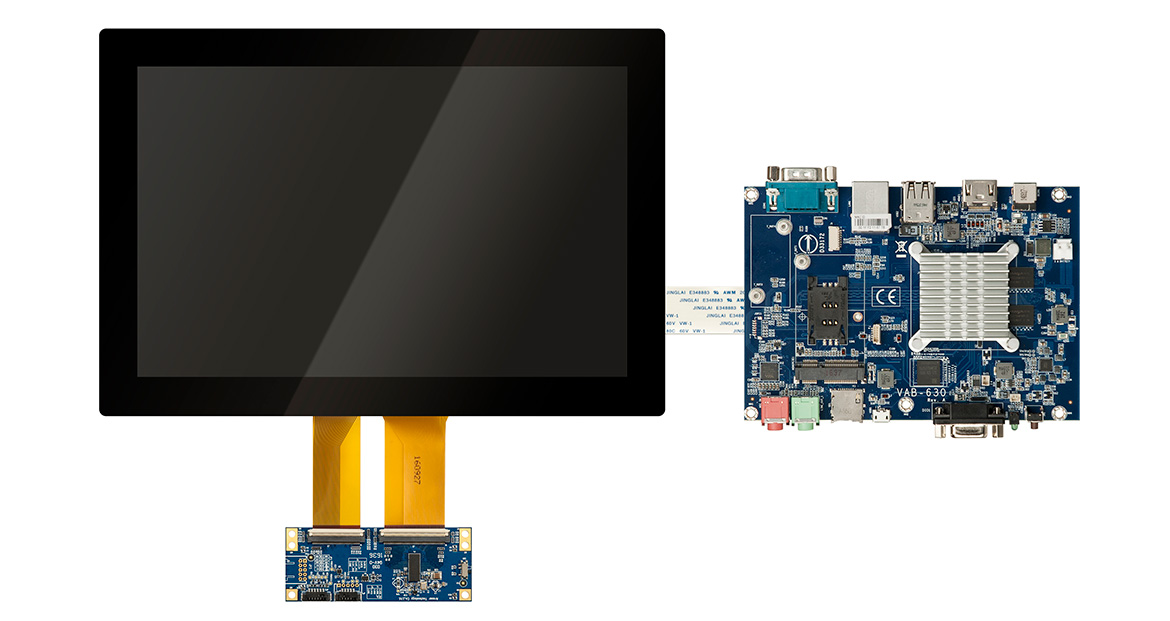

扩展性作通过整合可选的无线通信模块（包括USB Wi-Fi和蓝牙模块或miniPCIe 3G模块），可进一步增强威盛 VAB-630的功能。 还提供可选的10.1″LVDS LCD电容触控面板，以便于完整的系统开发。
应用范围威盛VAB-630具有超精简的外观，配有丰富的I/O，并支持无线连接和触控面板，为开发节省空间的数字标牌、信息服务站和人机接口系统提供了一个灵活的平台。
点击此处下载VAB-630数据資料PDF版，或浏览以下信息：
| 型号 | VAB-630 |
|---|---|
| 处理器 | 1.0GHz VIA Cortex-A9 dual-core SoC |
| 系统内存 | 1GB DDR3 SDRAM onboard |
| 板载存储 | 4GB eMMC flash memory |
| Boot Loader | 512KB SPI Flash ROM |
| 显卡 | Mali-400 SP GPU 2 integrated, independent 3D/2D graphics processing units Graphics engine supporting OpenGL® ES 2.0 hardware acceleration Supports MPEG-2 and H.264 video decoding up to 1080p |
| LAN | ASIC AX88772CLF |
| 音频 | VIA VT1603A I2S Audio Codec |
| HDMI | Integrated HDMI 1.4 Transmitter |
| USB | ASIC USB2514B-AEZC USB 2.0 hi speed 4-port hub controller |
| 扩展 I/O | 1 miniPCIe slot |

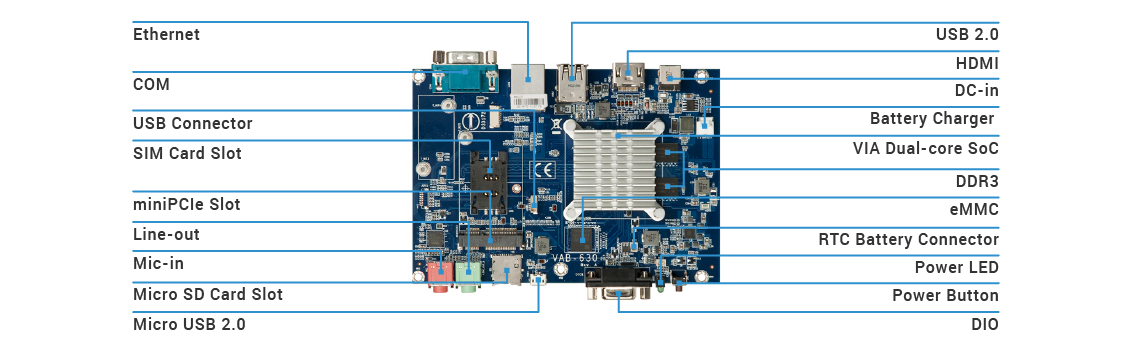

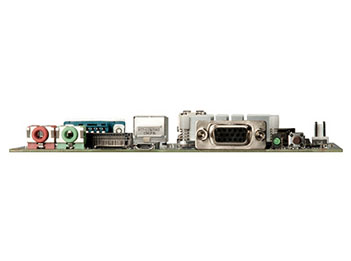

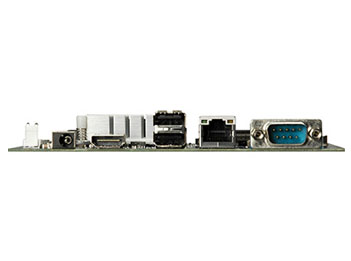

| 板载 I/O | 1 Single-channel LVDS connector 1 miscellaneous pin header for I2C touch screen interface 1 USB connector 1 UART (console port connector) 1 RTC battery connector 1 Battery charger connector 1 Reset connector 1 SIM card slot (supports 3G module without built-in SIM card slot) 1 miniPCIe slot |
| 前面板 I/O | 1 Micro USB 2.0 OTG port 1 DIO port supporting 10 GPIO with 3.3V power 1 Micro SD card slot 2 Audio jacks : Line-out and Mic-in 1 Power LED 1 Power Button |
| 后面板 I/O | 1 HDMI port 2 USB 2.0 ports 1 COM port for RS-232 (TX/RX) 1 10/100Mbps Ethernet port 1 DC-in jack |
| 供电 | 12V DC-in (5V DC-in optional) |
| 操作系统 | Android 5.0, Linux kernel 3.4.5 |
| 威盛 Smart ETK | Watchdog timer, GPIO, UART |
| 工作温度 | 0°C ~ 60°C |
| 工作湿度 | 0 ~ 90% @ 40°C (non-condensing) |
| 产品尺寸 | 14.6cm x 10.2cm (5.75" x 4.02") |
| 认证 | CE / FCC |
| 文件 | 版本 | 日期 |
|---|---|---|
| 用户手册 | v1.03 | 2017-12-31 |
| Android | ||
| Android 开发指南 for BSP v1.0.3 | v1.00 | 2017-08-11 |
| Android 快速入门指南 for EVK v1.0.3 | v1.00 | 2017-08-11 |
| Smart ETK 程序设计指南 | v1.00 | 2017-08-14 |
| Linux | ||
| Linux 开发指南 for BSP v1.0.1 | v1.00 | 2017-09-18 |
| 快速入门指南 for BSP v1.0.1 | v1.00 | 2017-09-18 |
| 软件 | 版本 | 日期 |
|---|---|---|
| Android | ||
| Android 5.0 Board Support Package (BSP) (6GB) | v1.0.3 | 2017-08-14 |
| Android 5.0 Evaluation Kit (EVK) (302.9MB) | v1.0.3 | 2017-08-14 |
| Linux | ||
| Linux Board Support Package (BSP) (775.1MB) | v1.0.1 | 2017-09-18 |
| Linux Evaluation Kit (EVK) (552.8MB) | v1.0.1 | 2017-09-18 |
重要: 一旦下载该系列软件包，表明您已同意软件许可协议。如您不同意软件协议的任何条款和条件，请不要继续下载该软件。
U-Boot version: 1.1.4
Kernel version: 3.4.5
Evaluation image: Android Lollipop 5.0
Development based on WM8980 Android_5.0_v0.2.0
Supports SPI with eMMC boot
Supports HDMI or LVDS display
Supports HDMI audio output
Supports ONation 10.1” LVDS Panel VIA1001 OT101RBWDLT-00 (1280×800)
Supports ONation capacitive touch panel (through USB interface)
Supports Micro USB OTG port
Supports Debug UART connector
Supports 10/100Mbps Ethernet
Supports Line-out and Mic-in
Supports EMIO-5531 USB Wi-Fi & Bluetooth module
Supports Bluetooth A2DP and SPP profile
Supports EMIO-2531 miniPCIe Wi-Fi & Bluetooth module
Supports Bluetooth A2DP and SPP profile
Supports Smart ETK v1.0.3: GPIO, UART, and Watchdog timer
U-Boot version: 1.1.4
Kernel version: 3.4.5
Evaluation image: Debian 8.6
Development based on debian-8.6.0-lxde-player (Debian 8.6)
Supports SPI with eMMC boot
Supports HDMI or LVDS display
Supports HDMI audio output
Supports ONation capacitive touch panel (through USB interface)
ONation 10.1” LVDS Panel VIA1001 OT101RBWDLT-00 (1280×800)
Supports Micro USB 2.0 OTG port
Supports COM1 DTE mode, COM2 as debug port
Supports Debug UART connector
Supports 10/100Mbps Ethernet
Supports Line-in, Line-out, Mic-in
Supports EMIO-2531 miniPCIe Wi-Fi & BT module
Supports Bluetooth A2DP and SPP profile
Supports EMIO-5531 USB Wi-Fi & BT module
Supports Bluetooth A2DP and SPP profile
Supports GPIO, UART and Watchdog timer
| 型号 | SoC | 描述 |
|---|---|---|
| 10GHL126000A0 | VIA Cortex-A9 dual-core SoC @ 1.0GHz | 3.5" SBC with 1.0GHz VIA Cortex-A9 dual-core SoC, 4GB eMMC, 1GB DDR3 SDRAM, HDMI, 2 USB 2.0, 1 Micro USB 2.0 OTG, COM, DIO, 10/100Mbps Ethernet, miniPCIe slot, Micro SD card slot, 12V DC-in 包装清单: VAB-630 board, RTC Battery |
| 型号 | 描述 |
|---|---|
| 电力配件 | |
| 99G63-02033A | 12V 36W power adapter (power plug not included) |
| LVDS LCD Panel | |
| STK-10630-00A0 | 10.1" LVDS LCD Touch panel with LVDS and touch cables |
| 无线模块 | |
| EMIO-5531-00A1 | VAB-820-W IEEE 802.11 b/g/n USB Wi-Fi + Bluetooth module with assembly kit and antenna |
| EMIO-2531-00A1 | VAB-820-W-M IEEE 802.11 b/g/n miniPCIe Wi-Fi & Bluetooth module with assembly kit and antenna |
