VAB-600

10cm x 7.2cm超小型Pico-ITX主板

搭载800MHz威盛Cortex-A9处理器

先进的2D/3D 图形及高清视频性能

丰富的I/O性能

提供Linux及Android软件开发包(BSP),包括威盛Smart ETK软件工具包,以加速产品上市时间

概要数据资料下载订购

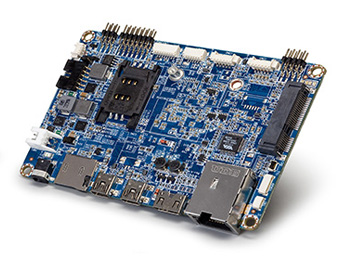

威盛VAB-600 Pico-ITX主板

威盛VAB-600搭载800MHz ARM Cortex-A9处理器,拥有丰富的多媒体性能及灵活的I/O连接,支持宽温工作及低功耗特性,可为各种人机界面(HMI)、工业自动化、家庭及其他物联网及M2M领域应用提供多功能、解决方案。

硬 件

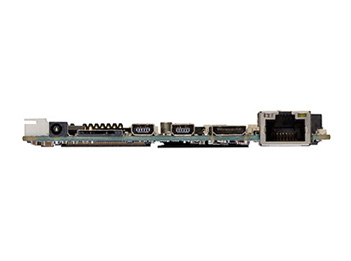

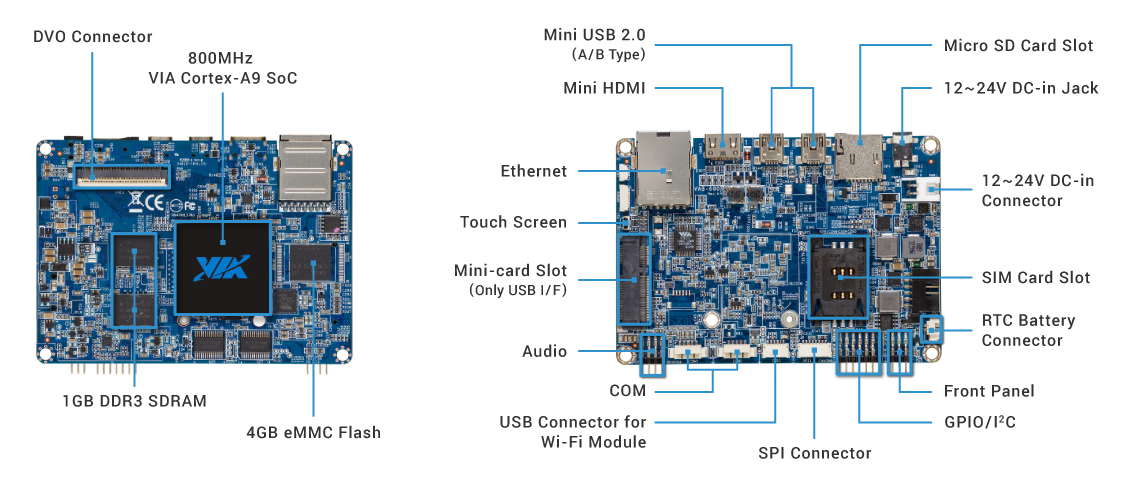

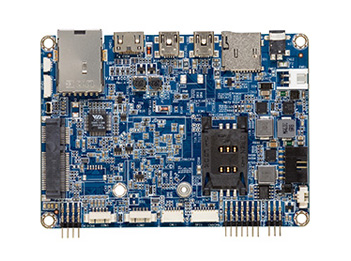

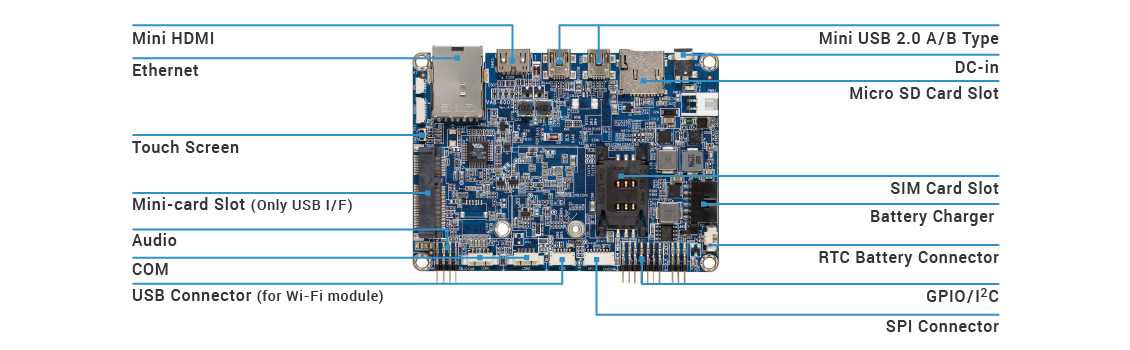

VAB-600主板基于超小型Pico-ITX主板,尺寸仅为10 cm x 7.2 cm,拥有丰富的I/O及连接性能。



软 件

威盛VAB-600(Springboard)提供Android 4.0.3软件开发包(BSP),包含内核、启动加载器源代码以及包括多个应用程序接口的威盛Smart ETK软件工具包,其中包括防止系统崩溃的Watchdog定时器(WDT)、GPIO接口、COM接口、RTC自动电源唤醒及1个例程应用,用于演示上述功能。

威盛VAB-600(Springboard)Linux 软件开发包(BSP)预置Debian image,包括内核及启动加载器源代码。其它性能包括1个Tool Chain,帮助调整内核,管理板载针脚、GPIO接口、I2C接口及其他硬件特性。

同时还提供一套完整的软件客制化服务,帮助客户加快产品上市时间,降低开发成本。

扩展性

VAB-600可进一步集成可选的I/O接口、LVDS接口及TTL卡等。

应用

威盛VAB-600拥有丰富的图形及高清视频性能,灵活的I/O连接选择及先进的软件开发工具,为人机界面(HMI)、工业自动化、家庭自动化、数字标牌等各种物联网及M2M应用提供耐用、多功能的解决方案。


点击此处下载VAB-600主板数据资料PDF版,或浏览以下信息:

型号VAB-600
处理器800MHz VIA Cortex-A9 SoC
系统内存1GB DDR3 SDRAM onboard
板载存储4GB eMMC Flash memory
Bootloader512KB SPI Flash ROM
显卡Mali-400 SP GPU
2 integrated, independent 3D/2D graphics processing units
Graphics engine supporting OpenGL® ES 2.0 hardware acceleration
Supports MPEG-2, VC-1and H.264 video decoding up to 1080p
LANVIA VT6113 10/100 base-TX PHY chip
音频VIA VT1603A I2S Audio Codec
HDMIIntegrated HDMI 1.4 transmitter
扩展 I/O1 miniPCIe slot (supports USB 2.0 connectivity for optional 3G module)
板载 I/O1 USB 2.0 connector
1 DVO connector for TTL or LVDS display (corresponding daughter card required)
2 COM port connectors (TX/RX)
1 Miscellaneous pin header for 1 I2C pair and 1 DIO (4 GPI + 4 GPO)
1 SIM card slot (supports 3G module without built-in SIM card slot)
1 RTC battery pin header
1 Keypad connector
1 CIR connector
1 SPI Flash pin header
1 Front panel pin header for system power-on, reset and power LED
1 4-wire resistive touch screen FPC connector (through VT1603A)
1 Front audio pin header for Line-in, Line-out, Mic-in
1 DC-in connector
1 Battery charger connector with smart battery function (manufacturing option)
1 miniPCIe slot (supports USB 2.0 connectivity for optional 3G module)
后面板 I/O2 Mini USB 2.0 ports
1 Mini HDMI port
1 10/100Mbps Ethernet port
1 Micro SD card slot
1 DC-in jack
操作系统Android 4.0, Linux kernel 3.0.8
供电12~24V DC-in
工作温度0°C ~ 60°C
工作湿度0% ~ 95% (non-condensing)
产品尺寸Pico-ITX (10cm x 7.2cm, 3.9" x 2.8")


VAB-600 文件

文件版本日期
用户手册v1.042014-12-19
Android 快速入门指南 BSP v1.2.2v1.002016-09-07
Android Image 安装指南 EVK v1.2.2v1.002016-09-07
Linux 快速入门指南 BSP v1.2.1v1.002016-05-19
Linux Graphical OS Image 安装指南 EVK v1.2.1v1.002016-05-19
Linux Command Line OS Image 安装指南 EVK v 1.2.1v1.002016-05-19
Smart ETK 程序设计指南v1.012015-07-31
VAB-600-A 快速入门手册v1.032014-11-12
VAB-600-B 快速入门手册v1.002013-05-23
VAB-600-C 快速入门手册]v1.002013-05-23
VAB-600-D 快速入门手册v1.022013-09-11

VAB-600 软件下载

软件版本日期
Android
Android 4.0.3 Board Support Package (BSP) (2.1GB)v1.2.22016-09-08
Android 4.0.3 Evaluation Kit (EVK) (210MB)v1.2.22016-09-08
Linux
Linux Board Support Package (BSP) (862.2MB)v1.2.12016-05-19
Linux Evaluation Kit (EVK) with Graphical OS Image (498.8MB)v1.2.12016-05-19
Linux Evaluation Kit (EVK) with Command Line OS Image (127.3MB)v1.2.12016-05-19


重要: 一旦下载该系列软件包,表明您已同意软件许可协议。如您不同意软件协议的任何条款和条件,请不要继续下载该软件。



  • U-Boot version: 1.1.4

  • Kernel version: 3.0.8

  • Evaluation image: Android Ice Cream Sandwich 4.0.3

  • Support SPI with eMMC as default boot device

  • Support HDMI or LVDS single display

  • Support HDMI audio output

  • Support Acmepoint TFT-LCD resistive touch panel (through 4-wire interface)

    • Acmepoint 7” TP070C01 (800×480)

  • Support AUO LVDS capacitive touch panels (through USB interface)

    • AUO 10.4” G104XVN01.0 (1024×768)

    • AUO 7” G070VW01 (800×480)

  • Support COM1 debug port

  • Support CIR

  • Support line-out and Mic-in

  • Support USB: keyboard, mouse, flash disk, hard disk, UVC camera

  • Support 10M/100M Ethernet

  • Support EMIO-1533 USB Wi-Fi module

  • Support system bar auto hide when set FULL_SCREEN

  • Support Smart ETK v1.2.0: Watchdog, GPIO, RTC wake-up, UART

(Bold font highlights the changes in this BSP release.)

  • U-Boot version: 1.1.4

  • Kernel version: 3.0.8

  • Evaluation image: Debian Wheezy 7.0

  • Support eMMC and Micro SD boot

  • Support HDMI or LVDS single display

  • Support HDMI audio output

  • Support Acmepoint TFT-LCD resistive touch panel (through 4-wire interface)

    • Acmepoint 7” TP070C01 (800×480)

  • Support AUO LVDS resistive touch panel (through USB interface)

    • AUO 22” G220SVN01.0 (1680×1050)

  • Support COM1 debug port

  • Support CIR

  • Support Line-out and Mic-in

  • Support USB: keyboard, mouse, flash disk, hard disk, UVC camera

  • Support 10M/100M Ethernet

  • Support EMIO-1533 USB Wi-Fi module

  • Support Quectel UC-20 miniPCIe Mobile Broadband module

  • Support Watchdog, GPIO, RTC wake-up


VAB-600 订购信息

型号SoC描述
VAB-600 10GAU082000A0VIA Cortex-A9 @ 800MHzPico-ITX board with 800MHz Cortex-A9 SoC, 4GB eMMC flash, 1GB SDRAM, 2 Mini-USB 2.0, 1 USB 2.0, Mini-HDMI, 2 COM, LAN, 12~24V DC-in power

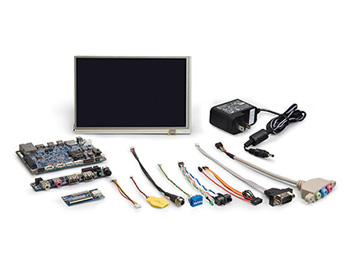

包装清单: VAB-600 board, DC power cable, front panel cable, front audio cable, COM cable, USB cable (for optional Wi-Fi USB module)

VAB-600 配件

型号描述
I/O扩展卡

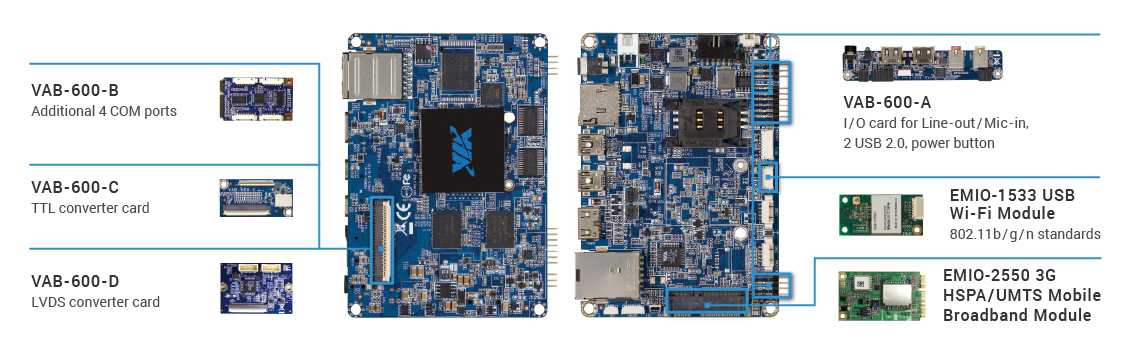

10GAX00000020VAB-600-A I/O card for Line-out/Mic-in, 2 USB 2.0, power button
10GAZ00000020VAB-600-B I/O card for additional 4 COM ports
10GBC00000020VAB-600-C TTL converter card
10GBD00000020VAB-600-D Dual-Channel LVDS converter card
无线模块
EMIO-1533-00A2VNT9271 IEEE 802.11 b/g/n USB Wi-Fi module with assembly kit


相关技术
