威盛ARTiGO A630是一款超薄型无风扇企业物联网网关系统。该系统拥有丰富的I/O接口及强大的网络连接性能,包括可选高速无线网络模块,支持与企业网络及云端灵活集成。
威盛ARTiGO A630系统搭载1.0GHz威盛ARM Cortex-A9双核系统芯片系统,采用高性能2D/3D图形及视频引擎,支持Open® GL ES 2.0硬件加速,拥有1个板载Micro SD卡槽、4GB eMMC闪存及1GB DRR3 SDRAM内存。
威盛ARTiGO A630尺寸仅154.4mm x 27mm x 106.7mm (长 x 高 x 宽),提供丰富的I/O接口及显示扩展选择。包括1个HDMI接口、1个RS-232/485 COM接口、1个DIO接口支持8位GPOI、2个USB 2.0接口、1个微型USB 2.0接口、1个10/100Mbps 以太网接口、1个迷你PCIe卡槽。还可通过板载USB排针接口或迷你PCIe卡槽支持Wi-Fi及3G无线模块。
威盛SOM-9X20软件开发包提供Android 8.0 或 Linux Kernel 3.18.44 系统以及威盛Smart ETK (嵌入式工具包)包括各种应用程序接口,如看门狗定时器(WDT),以确保防止系统崩溃、GPIO接入、RTC电源开启及1个样品应用。同时,威盛还提供整套软件客制化服务,帮助客户加快上市时间,降低开发成本。
点击此处下载VAB-630数据資料PDF版,或浏览以下信息:
型号 | ARTiGO A630 |
---|---|
处理器 | 1.0GHz VIA Cortex-A9 dual-core SoC |
系统内存 | 1GB DDR3 SDRAM onboard |
板载存储 | 4GB eMMC Flash memory Micro SD Card |
Bootloader | 512KB SPI Flash ROM |
显卡 | Mali-400 SP GPU 2 integrated, independent 3D/2D graphics processing units Graphics engine supporting OpenGL® ES 2.0 hardware acceleration Supports MPEG-2 and H.264 video decoding up to 1080p |
LAN | ASIC AX88772CLF |
HDMI | Integrated HDMI 1.4 transmitter |
USB | ASIC USB2514B-AEZC USB 2.0 hi-speed 4-port hub controller |
扩展 I/O | 1 miniPCIe slot 1 USB Connector |

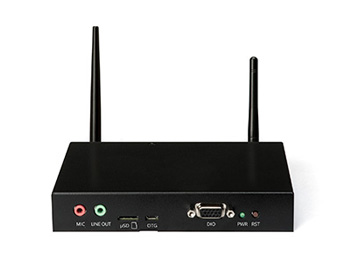

前面板 I/O | 1 Micro USB 2.0 OTG port 1 DIO port supports 8 GPIO (4 GPI + 4 GPO) 1 Micro SD card slot 2 Audio jacks: Line-out, Mic-in 2 Antenna holes for 3G/Wi-Fi 1 Power LED 1 Power button |

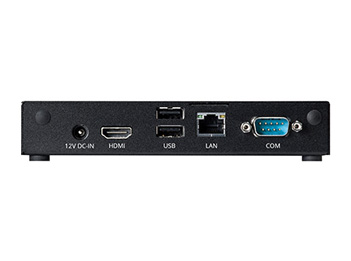

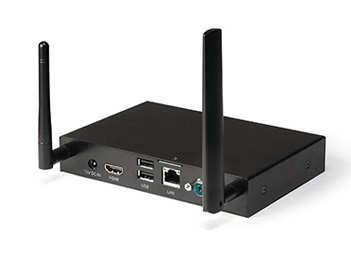

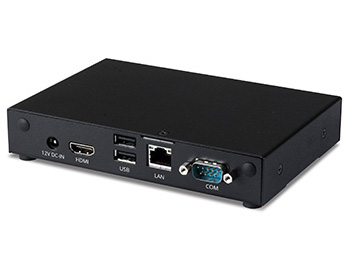

背板I/O | 1 HDMI port 2 USB 2.0 ports 1 COM port for RS-232 (TX/RX) 1 10/100Mbps Ethernet port 2 Antenna holes for 3G/Wi-Fi 1 DC-in jack |
底板 I/O | 1 miniPCIe slot 1 Micro SD/SPI boot switch |
供电 | 12V DC-in (Typical: 36W) |
操作系统 | Android 5.0, Linux Kernel 3.4.5 |
VIA Smart ETK | GPIO, UART, Watchdog timer |
工作温度 | 0°C to 50°C |
工作湿度 | 0% ~ 90% @ 45°C (non-condensing) |
存储温度 | -10°C ~60°C @ 90% (non-condensing) |
抗震性能 | With onboard eMMC 5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis |
抗冲击性能 | With onboard eMMC 50G, IEC 60068-2-27, half sine, 11ms duration |
机箱结构 | Metal top cover Metal chassis housing |
支架 | VESA Mount (75mm x 75mm) (Optional) |
产品尺寸 | 154.4mm(W) x 27mm(H) x 106.68mm(D) (6.08” x 1.06” x 4.2”) |
重量 | .50kg (1.10lbs) |
认证 | CE, FCC |
文件 | 版本 | 日期 |
---|---|---|
用户手册 | v1.0.0 | 2017-10-02 |
Linux | ||
Linux 开发指南 for BSP v1.0.1 | v1.0.0 | 2017-08-29 |
Linux 快速入门指南 for BSP v1.0.1 | v1.0.0 | 2017-08-29 |
软件 | 版本 | 日期 |
---|---|---|
Android | ||
Coming Soon... | ||
Linux | ||
Linux Board Support Package (BSP) (774.6MB) | v1.0.1 | 2017-11-08 |
Linux Evaluation Kit (EVK) (552.2MB) | v1.0.1 | 2017-11-08 |
重要: 一旦下载该系列软件包,表明您已同意软件许可协议。如您不同意软件协议的任何条款和条件,请不要继续下载该软件。
U-Boot version: 1.1.4
Kernel version: 3.4.5
Evaluation image: Debian 8.6
Development based on WM8980
Supports SPI with eMMC boot
Supports HDMI
Supports HDMI audio output
Supports Micro USB 2.0 OTG port
Supports Debug UART connector
Supports 10/100Mbps Ethernet
Supports Line-out and Mic-in
Supports EMIO-5531 USB Wi-Fi & Bluetooth module
Supports Bluetooth A2DP and SPP profile
Supports EMIO-2531 miniPCIe Wi-Fi & Bluetooth module
Supports Bluetooth A2DP and SPP profile
Supports GPIO, UART and Watchdog timer
型号 | SoC | 描述 |
---|---|---|
ATG-A630-1D10A1 | VIA Cortex-A9 dual-core SoC @ 1.0GHz | Fanless embedded system with 1.0GHz VIA Cortex-A9 Soc, 1GB DDR3 RAM, 4GB eMMC, HDMI, 2 USB 2.0, Micro USB 2.0, COM, DIO, 10/100Mbps Ethernet, miniPCIe slot, Micro SD card slot, 12V DC-in 包装清单: ARTiGO A630 system, AC-to-DC adapter, Power cord (USA type), Screw pack for miniPCIe card, Rubber feet |
型号 | 描述 |
---|---|
EMIO-5531-00A1 | VAB-820-W IEEE 802.11b/g/n USB Wi-Fi & Bluetooth module with assembly kit and antenna |
EMIO-2531-00A1 | VAB-820-W-M IEEE 802.11b/g/n miniPCIe Wi-Fi & Bluetooth module with assembly kit and antenna |
